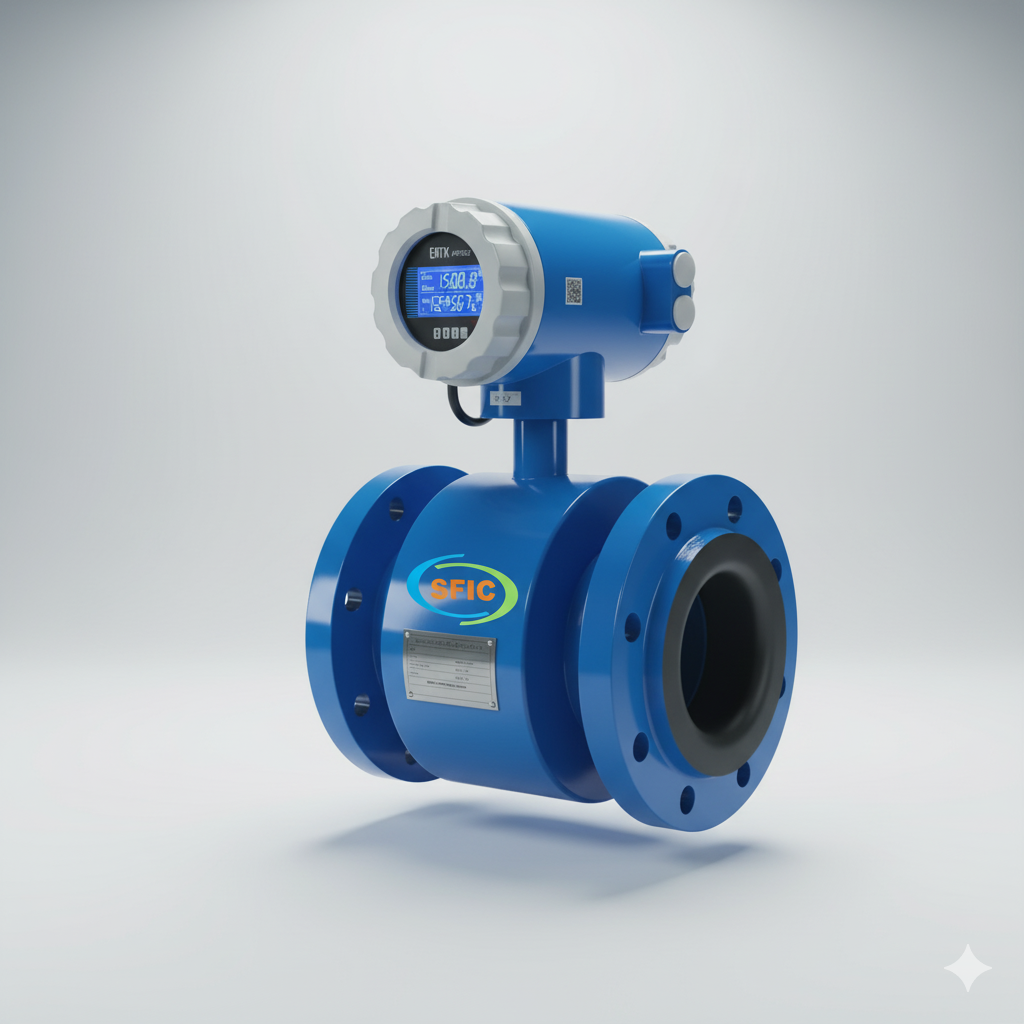

What is a Full Bore Inline Electromagnetic Flow Meter?
A Full Bore (Inline) Electromagnetic Flow Meter — often referred to as an inline magmeter — is a state-of-the-art flow measurement instrument designed for accurate, reliable and maintenance-free measurement of conductive liquids in closed pipelines. Unlike mechanical or obstruction-type flow meters, a full bore inline electromagnetic flow meter allows the fluid to pass unimpeded through a full-diameter pipe, ensuring zero or negligible pressure drop, minimal flow disturbance, and consistent long-term performance.
As a reputed manufacturer & supplier in Pune, India, Saitechflow specializes in engineering and supplying high-quality full bore electromagnetic flow meters to industries across India — from municipal water supply and wastewater treatment to chemical, food & beverage, and general industrial processes.
Whether you are designing a new plant, retrofitting an existing pipeline, or automating fluid flow measurement — our inline magmeters provide a robust solution tailored to Indian industrial conditions.
Enquire Now
Why Choose Full Bore Inline Magmeters over Other Flow Meters?
Full bore inline electromagnetic flow meters offer several significant advantages compared to mechanical or partial-bore meters. Some of the key benefits:
- No moving parts: The meter has no internal moving components. This means minimal wear and tear, no risk of blockage by suspended solids or particles, and drastically reduced maintenance frequency.
- Unobstructed, full-bore flow path: Because the internal bore diameter is the same as the pipeline, there’s virtually no pressure drop. This is especially beneficial in long-distance pipelines or high-flow applications where maintaining pressure and flow efficiency is critical.
- High accuracy & reliability: Inline electromagnetic meters provide excellent measurement fidelity (often ±0.5% or better), making them ideal where precise flow data is required — such as water billing, chemical dosing, process control, and compliance monitoring.
- Insensitive to fluid properties: Because the measurement principle depends on conductivity rather than mechanical movement, the flow reading remains stable regardless of fluid density, viscosity, temperature, or pressure (provided the fluid is electrically conductive).
- Suitable for challenging liquids: They perform reliably even with slurries, wastewater, corrosive or abrasive liquids, sludge, chemicals — where traditional flow meters may fail or require frequent maintenance.
- Bidirectional flow capability: Many electromagnetic meters can detect and measure flow in both forward and reverse directions — useful in systems with variable flow paths or recirculation.
- Digital-ready & automation-friendly: Modern inline magmeters often support 4–20 mA, pulse, HART, RS-485 / Modbus outputs — enabling seamless integration with SCADA, PLC, or telemetry systems.
These benefits make full bore inline magmeters one of the most versatile and future-proof flow measurement solutions for industrial, commercial, and municipal applications.
How Inline Electromagnetic Flow Meters Work — Principle & Construction
The working principle of an electromagnetic flow meter is based on Faraday’s Law of Electromagnetic Induction: when a conducting fluid flows through a magnetic field perpendicular to the direction of flow, it induces a voltage proportional to the fluid’s velocity.
🔧 Basic Construction:
- A non-magnetic pipe or liner (rubber, PTFE, or other insulating material) forms the flow tube.
- Electromagnetic coils around the tube generate a magnetic field across the entire cross-sectional area.
- Electrodes flush-mounted opposite each other on the inner wall detect the induced voltage as the conductive fluid flows.
- An electronic converter/transmitter processes the voltage signal, converts it into flow rate (volume/time), and outputs standardized signals (4–20 mA, pulse, RS-485 / Modbus, etc.).
Because the entire cross-section of fluid is magnetized, and flow is measured volumetrically, the meter remains accurate whether the fluid is clean water, wastewater, slurry, or a chemical mixture.
Important Requirement: the fluid must be electrically conductive (typically above a minimum conductivity threshold, often ~ 5 µS/cm). Non-conductive fluids like pure oils, gases, or steam cannot be measured using electromagnetic flow meters.
Typical Technical Specifications & Customization Options (Saitechflow Inline Magmeters)
At Saitechflow, we offer full bore inline electromagnetic flow meters with a wide configurable range to meet diverse application requirements:
Parameter / Option | Typical Range / Specification |
Pipe Size (Nominal Bore) | DN 15 to DN 600 (custom sizes on request) |
Body / Liner Materials | Rubber-lined, PTFE-lined, FRP-lined, MS, SS304, SS316, etc. |
Electrode Materials | SS, SS316, Hastelloy C, Titanium, Tantalum (optional) |
End Connections | Flanged (ANSI / DIN / IS), Wafer (on request) |
Output Signals | 4–20 mA, Pulse, RS-485 / Modbus, HART, Relay (optional) |
Power Supply | 230 V AC, 24 V DC, Battery (for remote installations) |
Protection / Enclosure | IP65 / IP67 / Weather-proof / Explosion-proof (optional) |
Accuracy | ±0.5% of reading (repeatability 0.1–0.2%) |
Flow Direction | Uni-directional or Bi-directional (configurable) |
Display / Transmitter | Compact Integral / Remote / Wall-mount / Field-mount options |
Because many fluid-handling industries in India use corrosive liquids, slurries, or wastewater, Saitechflow offers custom electrode and lining materials — ensuring durability, corrosion resistance, and long service life even under harsh chemical conditions.
Also, our inline magmeters can be supplied with remote-mounted transmitters or battery-powered units — especially useful for remote installations, mobile water tankers, or agricultural applications where power may not be reliable.
Applications — Where Full Bore Inline Magmeters Shine
Because of their versatility, inline electromagnetic flow meters from Saitechflow find application across many sectors:
- Municipal Water Supply & Distribution — measurement of raw water intake, treated water distribution pipelines, DM water systems.
- Wastewater Treatment Plants (ETP / STP) — monitoring effluent discharge, influent flow, sludge line measurement, sewage monitoring.
- Industrial Water & Utility Systems — cooling water, boiler feed water, process water flow measurement in manufacturing, refineries, power plants.
- Chemical & Process Industries — chemical dosing, process fluid flow, acidic/alkaline fluid measurement, corrosive/abrasive fluid handling.
- Food, Beverage & Dairy — sanitary-grade pipeline flow measurement for milk, juice, syrups, beverages, water for production.
- Irrigation & Agriculture — canal water flow measurement, fertigation lines, drip and sprinkler system monitoring.
- Mining, Pulp & Paper, Slurry Handling — measurement of slurry, sludge, mining wastewater, pulp, raw-material transport liquids.
- Pharmaceutical & Utilities — accurate flow measurement in water-for-injection (WFI), RO, chemical dosing, cleaning-in-place (CIP) systems.
Because inline electromagnetic flow meters are maintenance-free and insensitive to suspended solids, they are ideal for long-term installation in challenging industrial environments, ensuring consistent performance and minimal d
Why Saitechflow is the Preferred Supplier & Manufacturer in Pune, India
✔ Indian-Designed & Manufactured for Indian Conditions
Saitechflow understands the unique demands of Indian industries — water treatment, wastewater, chemical plants, municipal water supply, agriculture, and more. Our flow meters are engineered keeping in mind local water quality, conductivity levels, ambient conditions and site constraints.
✔ Comprehensive Range & Customization
We offer standard sizes as well as custom pipe diameters, lining, electrodes and output options to match exact customer requirements. Whether you need a compact inline magmeter for a small pipeline or a large-bore unit for industrial water lines — we supply it.
✔ Quality & Calibration Guarantee
Every inline electromagnetic flow meter from Saitechflow undergoes rigorous factory calibration, quality testing and verification. We also provide calibration certificates, documentation, and — if required — on-site calibration support.
✔ Full Support: Supply, Installation & After-Sales Service
As a trusted supplier in Pune, we not only deliver meters but also offer installation support, commissioning, user-training, maintenance contracts (AMC), and spare parts — ensuring long-term satisfaction.
✔ Competitive Pricing & Quick Delivery
Our local manufacturing facility allows us to keep production costs low and lead times short, providing a cost-effective solution without compromising quality or durability.
✔ Compliance & Certifications
Saitechflow inline magmeters comply with relevant Indian and international standards. We can also provide special lining / electrode options (e.g., for corrosive chemicals) or explosion-proof / ATEX options for hazardous area installations Installing Inline Electromagnetic Flow Meters — Best Practices for Accuracy & Longevity
To ensure accurate and reliable flow measurement over the lifetime of the meter, proper installation is crucial. Here are Saitechflow’s recommended guidelines:
- Ensure full-pipe flow: The pipeline should always be completely filled. Partial flow or air bubbles cause significant measurement errors.
- Maintain straight pipe runs: Provide at least 5 × D upstream and 3 × D downstream straight lengths (D = pipe internal diameter) to avoid swirl or flow distortion at the sensor.
- Proper grounding: Ensure good electrical grounding and avoid nearby sources of electromagnetic interference (motors, heavy electrical equipment).
- Orientation: Install the meter so that there are no air pockets near electrodes — horizontal or vertical installation must ensure full pipe, with electrodes at correct orientation.
- Avoid vibration: If pipeline is subject to vibration, use proper supports or remote-mounted transmitter options.
- Routine maintenance & calibration: Though inline magmeters are low maintenance, periodic inspection and verification (especially for abrasive or chemical fluids) ensures consistent accuracy over years.
Saitechflow provides detailed installation guidelines, commissioning checklists, and on-site support to help customers get accurate readings from day one.
Frequently Asked Questions (FAQ)
Q: Can electromagnetic flow meters measure non-conductive liquids like oils or gases?
A: No — inline electromagnetic flow meters require the fluid to be electrically conductive (usually > ~5 µS/cm). Non-conductive liquids, pure hydrocarbons, oils, or gases cannot be measured reliably.
Q: Will suspended solids, sludge or slurry affect measurement accuracy?
A: Not significantly. Because there are no moving parts and the flow path is unobstructed, even slurries or wastewater with particulates can be measured accurately — provided the fluid maintains sufficient conductivity.
Q: What size ranges are available?
A: Saitechflow offers inline magmeters from small bore (e.g. DN 15 / ½″) to large industrial pipelines (DN 600 and beyond), plus custom sizes on request.
Q: Can the meter output integrate with PLC / SCADA systems?
A: Yes — our inline magnetic flow meters support standard industrial outputs: 4–20 mA, pulse, RS-485 / Modbus, HART, and more. Remote or compact transmitters are available.
Q: What about maintenance?
A: Since there are no moving components, maintenance is minimal — periodic inspection of electrodes / lining depending on application; calibration checks as per standard practice.
H2: Sample Use Cases — Saitechflow Inline Magmeters in Action
🏭 Municipal Water Distribution & Metering
A municipal water board in Maharashtra installed our full bore inline magmeter on a 300 mm raw-water pipeline. They achieved accurate flow monitoring for pump control, water accounting and leak detection — with zero pressure drop and minimal maintenance even after years of operation.
🏭 Wastewater / ETP Flow Monitoring
A chemical plant running an Effluent Treatment Plant (ETP) needed reliable flow measurement for treated water discharge. Saitechflow supplied a rubber-lined inline magmeter with SS316 electrodes — capable of handling corrosive wastewater with suspended solids, providing stable readings and meeting compliance requirements.
🏭 Industrial Utility Water — Boiler Feed & Cooling Water
An industrial manufacturing facility implemented inline electromagnetic flow meters on its cooling water loop and boiler-feed lines. The unobstructed full-bore design avoided pump-head loss, and the digital output enabled integration with the central SCADA system for real-time monitoring.
🏭 Food & Beverage / Dairy Plant (Sanitary water / CIP)
A dairy plant required hygienic water flow measurement for CIP (Cleaning-In-Place) cycles. With PTFE-lined inline magmeters and hygienic electrodes, Saitechflow provided accurate, sanitary-compliant flow measurement without compromising cleanliness standards.
How to Order / Contact Saitechflow — Get Your Inline Magmeter Today
If you are looking for a trusted full bore electromagnetic flow meter manufacturer & supplier in Pune, India, reach out to Saitechflow. We offer:
- Custom sizing, lining, electrodes per your fluid specification
- Factory calibration and documentation
- Compact or remote transmitter options
- On-site installation & commissioning support
- After-sales service, calibration, AMC, spare parts
Submit your requirements — fluid type, pipe size, flow range, operating conditions — and our team will provide a detailed technical proposal, quotation, and delivery schedule.
Contact us today to get a quote, request datasheet, or discuss your project requirements. Choose reliability, accuracy, and long-term performance — choose Saitechflow inline electromagnetic flow meters.
Closing Summary
Full bore inline electromagnetic flow meters represent the gold standard for conductive liquid flow measurement — combining high accuracy, low maintenance, long-term reliability, and broad applicability. As a leading manufacturer & supplier based in Pune, India, Saitechflow delivers premium-quality inline magmeters tailored to Indian industrial needs — from municipal water systems to chemical plants, wastewater treatment, agriculture, food processing, and beyond.
Whether you’re building a new plant or retrofitting existing pipelines, Saitechflow’s inline electromagnetic flow meters ensure efficient, precise, and future-proof flow measurement with minimal upkeep
Working Principle
The High-Temperature / High-Pressure Electromagnetic Flow Meter operates on the simple yet powerful Faraday’s Law of Electromagnetic Induction.
When a conductive fluid passes through a magnetic field generated by coils in the flow tube, it induces a voltage proportional to the fluid velocity.
This voltage is sensed by electrodes mounted inside the flow tube and converted by the transmitter into a corresponding flow rate.
This contactless measurement ensures:
- No pressure drop
- No moving parts
- Long-term stability and repeatability
- Minimal maintenance, even in extreme conditions
SaiTechFlow enhances this classic principle with thermal shielding, reinforced housing, and digital signal processing, ensuring high accuracy under demanding process conditions
Key Features
- High-Temperature Resistance: Withstands up to 180°C (optional up to 250°C with ceramic liner).
- High-Pressure Endurance: Rated up to 40 bar; customized designs available for higher ratings.
- Robust Construction: Fabricated from stainless steel or carbon steel with protective coatings.
- Versatile Output Options: 4–20 mA, RS485, Modbus, HART, and pulse output.
- No Moving Parts: Ensures zero mechanical wear, perfect for long-term operation.
- High Accuracy: ±0.5% of reading; repeatability better than ±0.2%.
- Advanced Thermal Insulation: Special electrode and liner combinations for temperature stability.
- IP68 Protection (Optional): Suitable for outdoor and underground installations.
- Wide Size Range: DN10 to DN600, customizable as per process.
- Low Power Consumption: Energy-efficient transmitter design with digital electronics.
Technical Specifications
Parameter | Specification |
Pipe Size | DN10 to DN600 |
Accuracy | ±0.5% of Reading |
Flow Velocity Range | 0.2 to 10 m/s |
Fluid Conductivity | > 5 µS/cm |
Temperature Range | Up to 120°C (Optional up to 250°C) |
Pressure Rating | Up to 40 bar (Optional higher) |
Body Material | SS316 / SS316L / Carbon Steel |
Liner Material | PTFE / PFA / Ceramic |
Electrode Material | SS316 / Hastelloy / Titanium / Tantalum |
Output | 4–20 mA / RS485 / Modbus / Pulse |
Display | LCD / LED with Totalizer |
Protection | IP65 / IP68 |
Power Supply | 230 VAC / 24 VDC |
Mounting | Compact / Remote Type |
Communication | RS485 / Modbus / HART |
Applications
SaiTechFlow’s High-Temperature / High-Pressure Electromagnetic Flow Meters are widely used in industries that demand accurate flow measurement under harsh process conditions.
Typical applications include:
- Power Plants: Boiler feed water, condensate return, cooling water flow measurement.
- Chemical & Petrochemical Plants: Acids, caustic liquids, solvents, and other corrosive media.
- Steel & Metal Industries: Cooling circuits, furnace water, and process water lines.
- Pharmaceutical & Biotech: Hot process liquids and high-pressure cleaning systems.
- Paper & Pulp Mills: Hot slurry and process flow measurement.
- Textile Industry: Dyeing process liquids under pressure.
- Oil & Gas: Process water and condensate measurement in refineries.
These meters deliver stable, accurate, and repeatable performance where conventional meters cannot survive.
Advantages of SaiTechFlow High-Temp / High-Pressure Flow Meter
- Rugged & Reliable: Built for industrial environments with tough mechanical and thermal loads.
- Zero Pressure Drop: Full-bore unobstructed design ensures smooth flow.
- High Accuracy & Stability: Advanced electronics guarantee consistent readings over time.
- Thermal & Chemical Resistance: Ideal for corrosive or hot process liquids.
- Low Maintenance: No moving parts or mechanical friction.
- Long Service Life: Engineered for durability and extended operation cycles.
- Digital Connectivity: Compatible with SCADA, PLC, and DCS systems.
- Custom Options: Liner and electrode materials customizable for different fluids.
- Compact or Remote Mounting: Flexibility for installation in space-limited or high-temperature areas.
- Trusted Quality: Every unit is tested and calibrated before dispatch.
Why Choose SaiTechFlow?
- Made in Pune, Trusted Nationwide: Designed and manufactured by skilled engineers in India’s instrumentation hub.
- Expertise Across Industries: Experience in power, chemical, and process sectors.
- Quality You Can Trust: ISO 9001:2015 certified manufacturing with traceable calibration.
- Customer-Centric Approach: Customized meters as per process conditions.
- Technical Support: Dedicated service and commissioning assistance.
- Innovation: Constant R&D for better performance and new features.
At SaiTechFlow, we don’t just sell instruments — we deliver solutions that perform under pressure.
Quality & Calibration
Every SaiTechFlow High-Temperature / High-Pressure Flow Meter undergoes stringent testing, calibration, and inspection before delivery.
Meters are calibrated using NABL-traceable test benches to ensure maximum accuracy.
We provide:
- Factory Calibration Certificate
- Material Test Reports
- Pressure Test Certificate
- Performance Warranty
Each instrument reflects SaiTechFlow’s dedication to precision, reliability, and long-term performance.
Installation & Maintenance Guidelines
- Install the meter in a fully filled pipeline for stable readings.
- Use straight lengths of pipe (minimum 5D upstream, 3D downstream).
- Ensure proper grounding of the meter body and fluid.
- For extreme temperatures, use remote mounting with thermal insulation.
- Clean periodically using process-compatible solutions.
With its non-intrusive design and advanced protective coating, the meter requires minimal maintenance — even in high-load systems.
Industries We Serve
- Power Generation & Energy
- Chemical & Petrochemical
- Water & Wastewater Treatment
- Steel, Pulp & Paper
- Food & Beverage (Hot Process Applications)
- Oil & Gas
- Textile & Dyeing Plants
SaiTechFlow instruments are trusted by industries across India for their performance, consistency, and durability in demanding environments.
Conclusion
When your process operates under extreme heat or pressure, you need more than just a flow meter — you need a dependable partner in precision.
The High-Temperature / High-Pressure Electromagnetic Flow Meter from SaiTechFlow is that partner.
Built to endure, engineered for accuracy, and trusted across industries, it’s the perfect choice for critical process applications.
SaiTechFlow – Flow Measurement That Withstands the Pressure.
