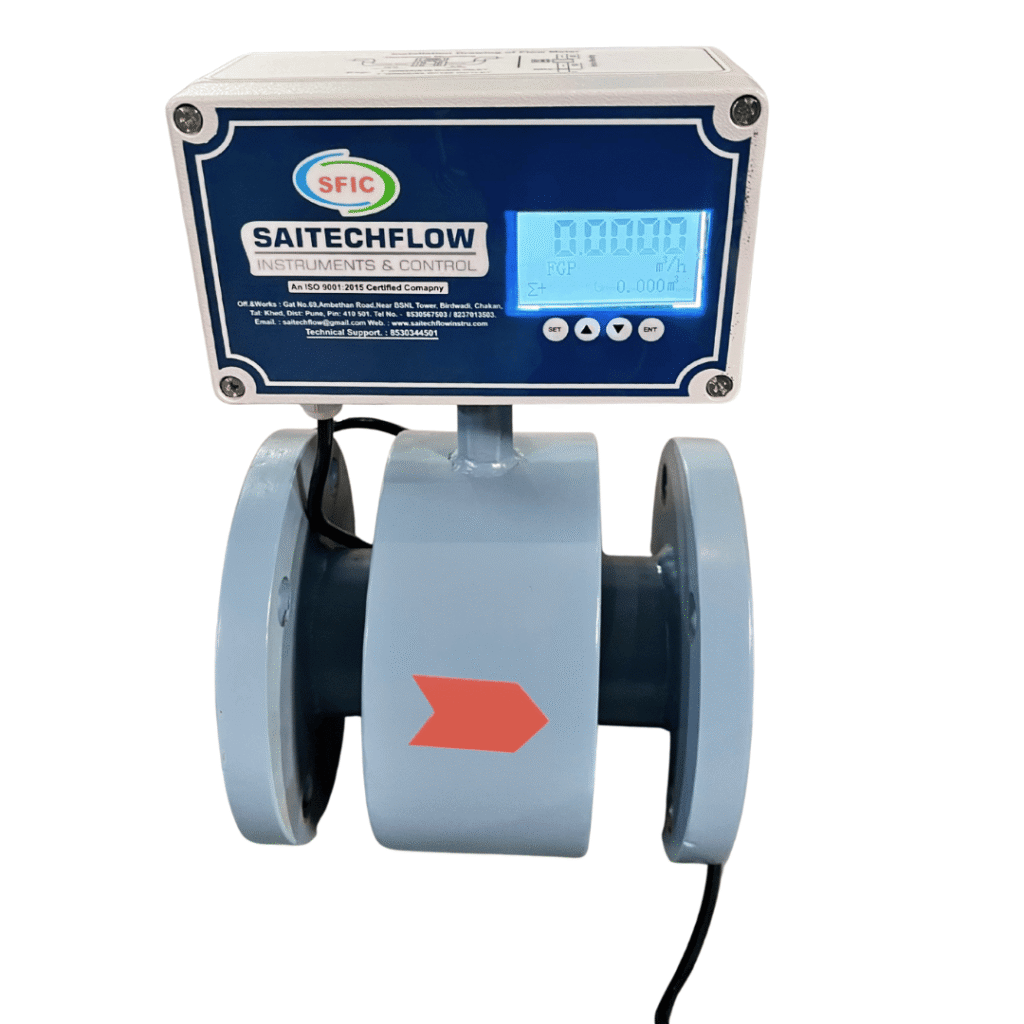

Full Bore Electromagnetic Flow Meter

Saitech Flow has become a trusted name in flow measurement solutions because of consistent
product performance and superior engineering excellence. Our Full Bore Electromagnetic
Flow Meters are widely used across Maharashtra, India, and international markets.
Key reasons customers prefer Saitech Flow:
✔ 1. Advanced Manufacturing Technology
Our manufacturing facility in Pune is equipped with world-class machinery, precision testing
tools, and calibration standards. Every meter undergoes rigorous quality checks, ensuring
long service life and zero failure.
✔ 2. High Accuracy & Reliability
Saitech Flow mag meters deliver ±0.5% or better accuracy, ensuring trust in critical industrial
processes like chemical dosing, water distribution, and effluent monitoring.
✔ 3. Best-Quality Lining Materials
We offer multiple lining options such as PTFE, Rubber, Neoprene, PU, and more,
depending on the fluid compatibility.
✔ 4. Suitable for All Industries
Whether it’s a small-scale plant or a large industrial process line, our Full Bore
Electromagnetic Flow Meters are available in all sizes from ½ inch to 24 inches or higher.
✔ 5. Made in India, Trusted Globally
Saitech Flow is committed to manufacturing affordable, world-standard flow meters using
Indian engineering capabilities. This makes us one of the top Full Bore Electromagnetic
Flow Meter suppliers in Pune, India.

Construction & Components of Saitech
Flow Full Bore Magmeters
A Full Bore Electromagnetic Flow Meter consists of:

1. Flow Tube
Acts as the main passage for the process fluid. Manufactured with high-grade stainless steel.
2. Liner
Internal lining protects the tube and ensures chemical resistance. Available options:
 PTFE
 Neoprene
 Hard Rubber
 Polyurethane
 EPDM
3. Electrodes
Measure the flow-induced voltage. Made from:
 SS316L
 Hastelloy C
 Titanium
 Tantalum
4. Magnetic Field Coils
Generate a stable magnetic field for accurate measurement.
5. Electronics / Transmitter
Converts the induced voltage into digital or analog output.
Output options include:
 4–20 mA
 Pulse output
 RS485 / MODBUS
 HART communication
6. Housing / Enclosure
Designed for field installation with IP65, IP67, or IP68 options.

Working Principle of Full Bore
Electromagnetic Flow Meter
The meter operates based on Faraday's Law of Electromagnetic Induction, which states:

When a conductive liquid flows through a magnetic field, a voltage is induced proportional to
the flow velocity.
This induced voltage is measured by electrodes and converted into the flow rate by the
transmitter.
Advantages of Electromagnetic Flow Meters:
 Highly accurate measurement
 No moving mechanical parts
 Unaffected by pressure, temperature & viscosity
 Ideal for dirty, slurry or corrosive fluids
 Long life & maintenance-free design

Technical Specifications of Saitech Flow
Full Bore Electromagnetic Flow Meter
Parameter Specification
Size Range 15 mm to 600 mm (custom on request)
Accuracy ±0.5% to ±0.25%
Liner Options PTFE, Rubber, Neoprene, PU
Electrode Materials SS316L, Hastelloy C, Titanium, Tantalum
Output 4–20 mA, Pulse, RS485 (MODBUS), HART
Power Supply 230V AC / 24V DC
Enclosure IP65 / IP67 / IP68
Flow Range 0.3 to 10 m/s
Temperature -10°C to 150°C (depending on liner)

Applications of Full Bore Electromagnetic
Flow Meters
Saitech Flow's Full Bore Magmeters are used in a wide range of industries due to their robust
performance and high reliability.
1. Water & Wastewater Treatment Plants
 Raw water measurement
 Sludge and slurry
 Effluent (ETP / STP) monitoring

2. Agriculture & Irrigation
 Canal water measurement
 Borewell flow monitoring
 Drip irrigation systems
3. Chemical & Process Industries
 Chemical dosing
 Acids, alkalis, solvents
 Viscous and corrosive liquids
4. Food & Beverage Industry
 Milk, beverages, juices
 Liquid ingredients and additives
5. Mining & Mineral Processing
 Slurry flow measurement
 Thick liquids with suspended particles
6. Pharmaceutical & Biotechnology
 Pure water
 Process fluids
 Sanitary applications
7. Power & Energy Sector
 Cooling water
 Boiler feed water
 Industrial utilities

Why Choose Saitech Flow as Your Full
Bore Electromagnetic Flow Meter Supplier
in India?
✔ High-quality & long service life
✔ Accurate measurement for all fluid types
✔ Custom sizes available

✔ Affordable pricing for Indian industries
✔ Quick delivery across India & export support
✔ Strong after-sales service
Our team provides complete support including selection, installation guidance, calibration,
and troubleshooting.

Benefits of Saitech Flow Full Bore
Electromagnetic Flow Meters
✔ Zero pressure loss
✔ Maintenance-free
✔ Works with dirty, slurry & corrosive fluids
✔ Long-term stable performance
✔ Easy installation & integration
✔ Digital transmitter with robust communication protocols

Conclusion
Saitech Flow stands as a leading Full Bore Electromagnetic Flow Meter manufacturer in
Pune, India, offering reliable, accurate, and durable flow measurement instruments. With
advanced technology, superior engineering, and customer-focused service, we are proud to be
one of the best suppliers of Full Bore Magmeters in India.
Whether your requirement is for water treatment, industrial liquids, chemicals, food
processing, or irrigation, Saitech Flow delivers the right solution with guaranteed
performance and long-term reliability.
